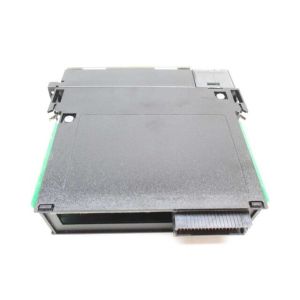

1756-A10 ALLEN BRADLEY ControlLogix plc ControlLogix 10 Slots Chassis

Quick Details
Place of Origin:
Wisconsin, United States
Brand Name:
Allen Bradley
Model Number:
1756
Name:
1756-A10 ControlLogix plc i/o Modules
Weight:
4.082 lbs
Series:
PLC-5
Desc.:
allen bradley distributors locator
SER:
A B C D E
Type:
PLC
User Memory Words, Max:
100,000
Total I/O, Max:
3072
Number of Communication Ports (mode):
1756
Manufactuer:
Rockwell Automation

OTHER SUPERIOR PRODUCTS

EtherNet/IP Network Configuration
EtherNet/IP Communication Modules
1756-ENBT, 1756-EN2F, 1756-EN2T, 1756-EN2TP, 1756-EN2TPK, 1756-EN2TPXT, 1756-EN2TR, 1756-EN2TRXT,
1756-EN2TSC, 1756-EN2TXT, 1756-EN3TR, 1756-EWEB, 1768-ENBT
CompactLogix 5370 Controllers
EtherNet/IP Adapters
1734-AENT, 1734-AENTR, 1769-AENTR, 1794-AENT, 20-COMM-E, 22-COMM-E, 20-750-ENETR
Embedded Switches
1783-ETAP, 1783-ETAP1F, 1783-ETAP2

AB 1756-A10 10 Slot ControlLogix Chassis. The 1756-A10 chassis backplane provides a high-speed communication path between modules and distributes power to each of the modules within the chassis. Any ControlLogix module can be placed into any slot. Slot filler modules (1756-N2) are required to fill empty slots.

The 1756-A10 ControlLogix chassis are designed for horizontal mounting only. Number of Slots: 10; Backplane current, chassis/slot max @ 1.2V DC: 1.5 A/1.5 A; Backplane current, chassis/slot max @ 3.3V DC: 4 A/4 A; Backplane current, chassis/slot max @ 5.1V DC: 15 A/6 A; Backplane current, chassis/slot max @ 24V DC: 2.8 A/2.8 A; Power dissipation: 6.1 BTU/hr; Power consumption: 1.8 W. Dimensions (WxHxD): 483 x 169 x 145 mm (19.0 x 6.65 x 5.71 in.); Cabinet size (WxHxD), min: 762x 507 x 203 mm (30 x 20 x 8 in.); Weight, approx.: 1.45 kg (3.2 lb).

.

FAQ for 1756-PB75
What is the difference between the 1756-PA75 and 1756-PB75?

The 1756-PA75 operates when supplied with 85-264VAC while the 1756-PB75 is powered by an external 18-32VDC supply voltage.

Can I use this power supply as voltage source of panel components?

No. This power supply is intended only for the ControlLogix chassis.

What are compatible ControlLogix chassis for use with the 1756-PB75?

Compatible chassis are 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17.
