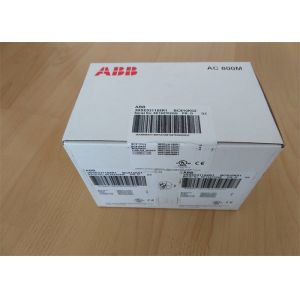

ABB AC800M controller BC810K02 MODULE 3BSE031155R1 I/O Module NEW
in box
Description of BC810K02
The BC810 unit consists of two basic parts: baseplate (TP857) and
power supply/logic board. The baseplate is where the connectors to
CEX-Bus and the external power reside. It is grounded to the
DIN-rail through metal parts of the housing. The board also carries
the external power voting diode and fuse. The power supply and
logic board contains the +3.3 V converter, logic, drivers for
CEX-Bus interconnection and the connector for interconnection
cable.
BC810 can be used with PM861A, PM862, PM864A, PM865, PM866, PM866A
and PM867.
In a fully redundant system with two interlinked BC810 and
primary/backup CPU pair, the BC810 support online replacement of
the CPU baseplate without disturbing the CEX traffic. If the BC810
has to be replaced, all traffic to the connected CEX segment are
stopped.
The CEX-Bus is used for extending the on-board communication ports
with communication interface units. It is also possible to use
redundant communication interfaces on the CEX-Bus. The CEX-Bus
Interconnection unit BC810 is used to increase the availability on
the CEX-Bus by dividing it into separate segments. This improves
the availability in systems with redundant communication
interfaces.
General Information
| Article number | 3BSE031155R1 (BC810K02) |
| Redundancy | Yes |
| High Integrity | Yes |
| Performance | Hot swap supported |
Detailed data
| Power supply | Inputs designated L+ and L- 24 V nominal, variation between 19.2 V
DC and 30 V DC. |
| Power consumption +24 V typ/max | 50 mA typical (70 mA max) |
| Power dissipation typ. | 1.2 W typical |
Communications
| BC810K02 | BC820K02 | PM851AK01 |
| PM858K02 | PM860AK01 | PM862K01 |
| PM865K02 | SM811 (for PM865) | PM866AK01 |
| PM856AK01 | PM858K01 | PM862K02 |
| PM865K01 | PM866AK02 | PM867K01 |
| SM812 (for PM867) | PM891K01 | PM891K02 |
Environmental and certification
| Temperature, Operating | +5 to +55 °C (+41 to +131 °F) |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Relative humidity | 5 to 95 %, non-condensing |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE- marking | Yes |
| Electrical Safety | UL508 |
| Hazardous location | cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
| Marine certificates | ABS, BV, DNV-GL, LR, RS, CCS |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Features and benefits
• Supports redundant communication interface units.
• Supports on-line replacement of the CPU.
• External power supply.
• Supports hot swap
Dimensions
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.9 in.) |
| Depth | 127.5 (5.0 in.) |
| Weight | 1.5 kg (3.31 lbs) (BC810K02 package) |
