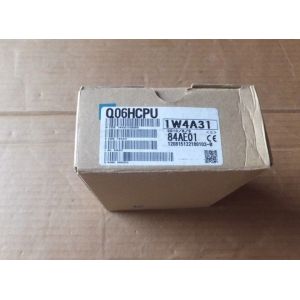

Q06HCPU-A PLC CPU Module MITSUBISHI MELSECQ Programmable Controller

Ask Lasest Price
Brand Name :	Mitsubishi
Model Number :	Q02HCPU
Certification :	CE
Price :	Contact us
Payment Terms :	T/T
Supply Ability :	50
Delivery Time :	3-5days

Add to Cart

Product Details
Company Profile

Q06HCPU-A PLC CPU Module MITSUBISHI MELSECQ Programmable Controller

Q06HCPU-A PLC CPU Module MITSUBISHI MELSECQ Programmable Controller

General specifications of Mitsubishi QCPU series PLC
CPU types: basic CPU, high-performance CPU, process CPU, redundant CPU, and general-purpose CPU
Program memory: instruction steps from 8k to 1000k
Command processing speed: from 1.9ns to 200ns
Maximum basic I/O total input: 256/1024/4096
I/O bus extended using CC Link: 2048/8192
Connector: RS232, USB mini, and Ethernet
Supports SD card storage cards
Support automatic PID adjustment, CC Link Field Network connection
Supports multiple modules such as I/O, simulation, motion control, communication (Modbus, Profibus, CanOpen, etc.)
Q06HCPU specifications
CPU type: High performance CPU
Program memory: 60k instruction steps
Instruction processing speed: 34ns
Maximum basic I/O total: 4096
Total number of CC Link expansion I/O heads: 8192
Connector: USB mini, RS232
Supports high-speed interrupt function in CPU version
Documents - Software
QCPU series directory: download
QCPU series hardware manual: download
QCPU series programming manual: download
QCPU series functional manual: download
Software GX Developer V8.0: Download
Software GX Developer V8.91: Download
Software GX Simulator V7: Download
Software GX Work 2+3 Full Download
Technical Article Compilation: Technical Support
application program
Compared with previous generations of Mitsubishi PLCs, Q06HCPU has significant advantages in the Q series, suitable for distributed line control problems that require a large number of I/O inputs with low processing performance. The Q06HCPU code that supports high-speed interrupt functions is suitable for fast response control problems in various external impact dependent scenarios.

Specifications:

Condition	New
Weight (kg)	0.2
Our Part Number	Q06HCPU
Height (mm)	98
Width (mm)	27.4
Depth (mm)	89.3
Brand	Mitsubishi
Manufacturer Range	Q Series
Short Description	Mitsubishi Q06HCPU Q Series High Speed Q Cpu Module, 60k Step Memory, 34ns Per Instruction, Multi Processor Capability

Range Overview:

Q CPU modules available as single & multi processor
RS232C interface for easy programming & monitoring
Integrated flash ROMs for memory operation
Processing the inputs & outputs with refresh mode
Q02HCPU & upwards have a USB interface
Floating point arithmetic according to IEEE 754
Mathematical functions such as angle/exponential functions & logarithm
Q Process CPUs offer:
Simplified control & engineering
Extensive loop control
High speed loop control
Hot-swap module replacement in run mode
Works with CCLink IE, MELSECNET/H for multiplex remote I/O system
Loop control & sequence control with 1 CPU
Use with isolated analogue modules, ideal for process control
Smoothed analogue input value

Features of the MELSEC System Q

CPU modules

The MELSEC System Q offers a wide range of CPU modules:

●Basic model QCPU

Model	Program capacity	Number of I/O points
Q00JCPU	8k steps	256 points
Q00CPU	8k steps	1024 points
Q01CPU	14k steps	1024 points

●High performance model QCPU

Model	Program capacity	Number of I/O points
Q02CPU	28k steps	4096 points
Q02HCPU	28k steps	4096 points
Q06HCPU	60k steps	4096 points
Q12HCPU	124k steps	4096 points
Q25HCPU	252k steps	4096 points

●Process CPU

Model	Program capacity	Number of I/O points
Q02PHCPU	124k steps	4096 points
Q06PHCPU	60k steps	4096 points
Q12PHCPU	124k steps	4096 points
Q25PHCPU	252k steps	4096 points

●Redundant CPU

Model	Program capacity	Number of I/O points
Q12PRHCPU	124k steps	4096 points
Q25PRHCPU	252k steps	4096 points

●Motion CPU

Model	Number of control axes
Q172HCPU (-T)	8 axes
Q173HCPU (-T)	32 axes
Q172CPUN (-T)	8 axes
Q173CPUN (-T)	32 axes

●Universal model QCPU

– Q00UJCPU

– Q00UCPU

– Q01UCPU

– Q02UCPU

– Q03UDCPU

– Q03UDECPU

– Q04UDHCPU

– Q04UDEHCPU

– Q06UDHCPU

– Q06UDEHCPU

– Q10UDHCPU

– Q10UDEHCPU

– Q13UDHCPU

– Q13UDEHCPU

– Q20UDHCPU

– Q20UDEHCPU

– Q26UDHCPU

– Q26UDEHCPU

Network/Information Processing Modules

●MES Interface Module

QJ71MES96

●Ethernet Modules

QJ71E71-100

QJ71E71-B5

QJ71E71-B2

●MELSECNET/H Modules

QJ71LP21-25 QJ72LP25-25

QJ71LP21S-25 QJ72LP25G(E)

QJ71LP21G(E) QJ72BR15

QJ71BR11

MELSECNET/H PC I/F Boards

Q80BD-J71LP21-25

Q80BD-J71LP21S-25

Q80BD-J71LP21G(E)

Q80BD-J71BR11

●CC-Link Module

QJ61BT11N

CC-Link PC I/F Board

Q80BD-J61BT11N

●CC-Link/LT Module

QJ61CL12

●Serial Communication Modules

QJ71C24N

QJ71C24N-R2

QJ71C24N-R4

●FL-net (OPCN-2) Interface Modules

QJ71FL71-T-F01

QJ71FL71-B5-F01

QJ71FL71-B2-F01

●AS-i Master Module

QJ71AS92

●Intelligent Communication Modules

QD51

QD51-R24

Intelligent Function Modules

●Analog Modules

A/D Converter Modules

Q64AD-GH

Q62AD-DGH

Q64AD

Q68ADV

Q68ADI

D/A Converter Modules

Q62DA-FG

Q62DAN

Q64DAN

●Temperature Control Modules

Q64TCTT

Q64TCTTBW

Q64TCRT

Q64TCRTBW

●Temperature Input Modules

Q64TDV-GH

Q64TD

Q68TD-G-H01

Q64RD-G

Q64RD

●Interrupt Module

QI60

●Blank Cover

QG60

●Loop Control Module

Q62HLC

●Positioning Modules

QD75P1

QD75P2

QD75P4

QD75D1

QD75D2

QD75D4

QD70P4

QD70P8

QD70D4

QD70D8

●Channel Isolated Pulse Input Module

QD60P8-G

●High Speed Counter Modules

QD62

QD62D

QD62E

QD63P6

QD64D2

Integration of Motion CPU and Personal Computer CPU

The System Q has the multiple CPU system function which also permits PLC CPUs and Motion CPUs to be loaded together on one base unit. While data exchange is optimized via the back bus of the base unit, space requirements and system costs are significantly reduced at the same time.

A Motion CPU can use the SSC NET that rapidly controls up to 96 axes in a single system and saves wiring. The personal computer CPU (Q-PC) enables the access to I/O modules and intelligent function

modules and the communication of all CPUs with each other. When a PC/C-CPU is used the system can also be controlled with a high-level language like C++ or VB.

What is Details of Our Mitsubishi Parts?

All the Mitsubishi Parts are new and original with package.
Warranty time: 180 or 360 days.
